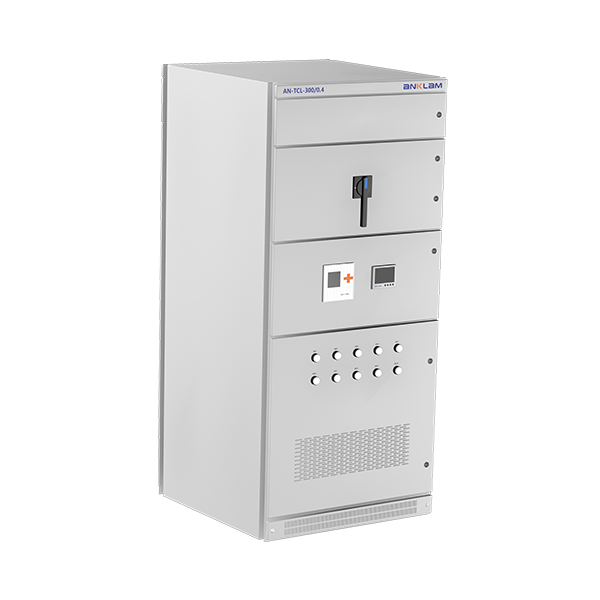

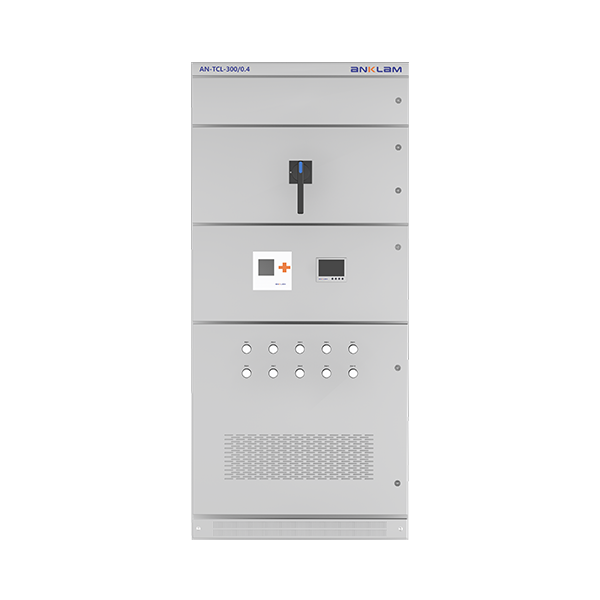

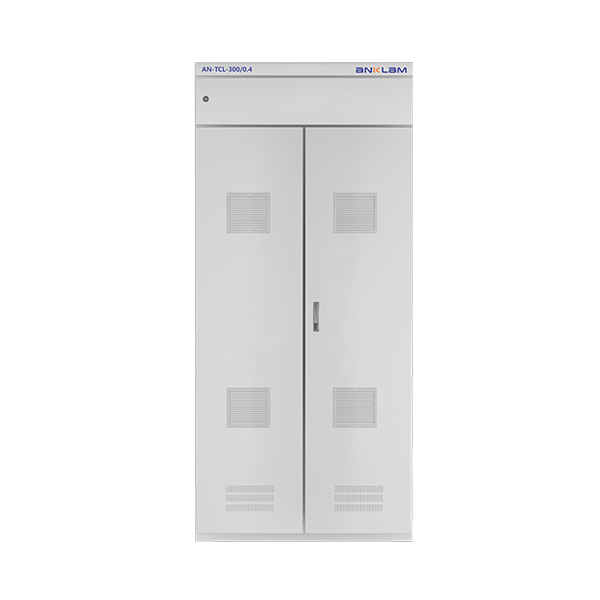

Reactive Power Compensation Device

Low voltage reactive power compensation device is widely used in AC 50HZ/60HZ, rated voltage 380V ~ 660V distribution system, it sets reactive power compensation, power grid monitoring in one, not only through switching capacitor banks to compensate the reactive power loss in the power grid, improve power factor, reduce line loss, thereby improving the load capacity and power supply quality of the power grid; At the same time, it can also monitor the three-phase voltage, current, power factor and other power parameters in real time

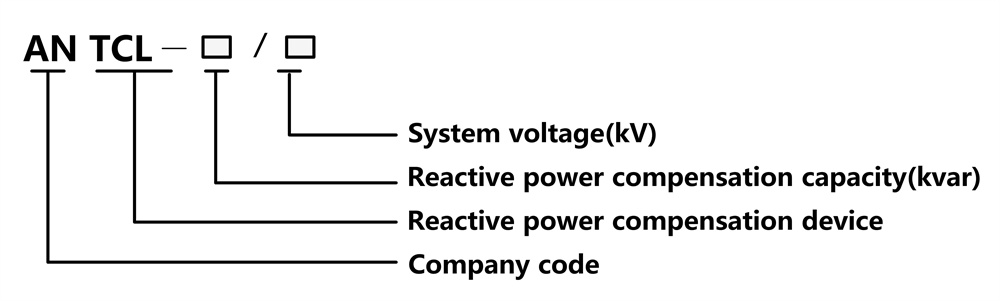

Type Explanation

● Vertical and horizontal busbars are connected in cross-over mode. Instead of the traditional wiring harness connection, completely solve the wiring harness winding problem, the cabinet is simple and clear.

● TSC series thyristor switching switch is selected. The thyristor switching switch has zero dynamic switching, fast response speed (1 ~ 20ms), no mechanical wear, no noise and long service life.

● Harmonic content field measurement, collection, professional analysis, calculation, capacitance, reactance professional pairing, effectively suppress system harmonics and inrush current, improve the electricity environment and protect electrical equipment.

● Large-screen LCD liquid crystal display, real-time display of multi-item power parameters: active power, reactive power, voltage, current, power factor, current voltage harmonic c distortion rate and other parameters.
